夹套保温截止阀的保温夹套焊装于阀门的两法兰之间，阀门的侧面、底部设置有保温夹套的两个连接口。夹套内涵入蒸汽能防止介质结晶。广泛应用于石油、化工、冶金、制药等各类系统中，以输送常温下会凝固的高粘度介质。
产品特点
1、结构简单，制造和维修比较方便；
2、工作行程小，启闭时间短；
3、密封性好，密封面间摩擦力小，寿命较长；
4、适用于粘度较大、易结焦的介质。

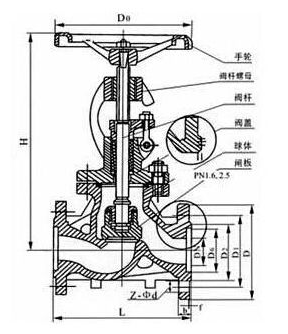

主要外形尺寸
| 型号 |
公称通径 DN |
尺寸 | |||||||
| L | D | D1 | D2 | B-f | Z-φ | H | D0 | ||
| BJ41W/H-16P/R/C | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | 190 | 140 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | 205 | 160 | |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | 270 | 180 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | 310 | 200 | |
| 50 | 230 | 160 | 125 | 100 | 18-3 | 4-18 | 358 | 240 | |
| 65 | 290 | 180 | 145 | 120 | 18-3 | 4-18 | 373 | 280 | |
| 80 | 310 | 195 | 160 | 135 | 20-3 | 8-18 | 435 | 320 | |
| 100 | 350 | 215 | 180 | 155 | 20-3 | 8-18 | 500 | 360 | |
| 125 | 400 | 245 | 210 | 185 | 22-3 | 8-18 | 614 | 400 | |
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8-23 | 674 | 400 | |
| 200 | 600 | 335 | 295 | 265 | 26-3 | 12-23 | 818 | 450 | |
| 250 | 730 | 405 | 355 | 320 | 30-3 | 12-25 | 969 | 550 | |
| 型号 |
公称通径 DN |
尺寸 | |||||||
| L | D | D1 | D2 | B-f | Z-φ | H | D0 | ||
| BJ41WH-25PRC | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-14 | 233 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | 275 | 140 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | 285 | 160 | |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | 302 | 180 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | 355 | 200 | |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-18 | 362 | 240 | |
| 65 | 290 | 180 | 145 | 120 | 22-3 | 8-18 | 400 | 280 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-18 | 430 | 320 | |
| 100 | 350 | 230 | 190 | 160 | 24-3 | 8-23 | 465 | 360 | |
| 125 | 400 | 270 | 220 | 188 | 28-3 | 8-25 | 550 | 400 | |
| 150 | 480 | 300 | 250 | 218 | 30-3 | 8-25 | 700 | 400 | |
| 200 | 600 | 360 | 310 | 278 | 343 | 12-25 | 780 | 450 | |
| 250 | 730 | 425 | 370 | 335 | 36-3 | 12-30 | 900 | 550 | |
| 型号 |
公称通径 DN |
尺寸 | ||||||
| L | D | D1 | D2 | B-f | Z-φ | H | ||
| BJ41WH-40PRC | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-14 | 233 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | 275 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | 285 | |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | 302 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | 355 | |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-18 | 370 | |
| 65 | 290 | 180 | 145 | 120 | 22-3 | 8-18 | 408 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-18 | 436 | |
| 100 | 350 | 230 | 190 | 160 | 24-3 | 8-23 | 475 | |
| 125 | 400 | 270 | 220 | 188 | 28-3 | 8-25 | 558 | |
| 150 | 480 | 300 | 250 | 218 | 30-3 | 8-25 | 720 | |
| 200 | 600 | 375 | 320 | 282 | 38-3 | 12-30 | 800 | |
| BJ41WH-64PRC | 15 | 170 | 105 | 75 | 55 | 18-2 | 4-14 | 240 |
| 20 | 190 | 125 | 90 | 68 | 20-2 | 4-18 | 280 | |
| 25 | 210 | 135 | 100 | 78 | 22-2 | 4-18 | 290 | |
| 32 | 230 | 150 | 110 | 82 | 24-2 | 4-23 | 325 | |
| 40 | 260 | 165 | 125 | 95 | 24-3 | 4-23 | 360 | |
| 50 | 300 | 175 | 135 | 105 | 26-3 | 4-23 | 410 | |
| 65 | 340 | 200 | 160 | 130 | 28-3 | 8-23 | 430 | |
| 80 | 380 | 210 | 170 | 140 | 30-3 | 8-23 | 465 | |
| 100 | 430 | 250 | 200 | 168 | 32-3 | 8-25 | 537 | |
| 125 | 500 | 295 | 240 | 202 | 36-3 | 8-30 | 630 | |
| 150 | 550 | 340 | 280 | 240 | 38-3 | 8-34 | 790 | |
| 200 | 650 | 405 | 345 | 300 | 44-3 | 12-34 | 910 | |
